BGP 路由策略工具
{Back to Index}

1. 使用正则表达式匹配 AS_PATH
2. 基于 Community 的路由操控
- 2.1. 实验之 Community 的设置
3. 过滤工具

1 使用正则表达式匹配 AS_PATH

1.1 匹配示例

Figure 1: 匹配示例

1.2 常用命令

R3#show ip bgp
BGP table version is 4, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
*>   1.1.1.1/32       10.1.13.1                0             0 100 i
*>   2.2.2.2/32       10.1.23.2                0             0 200 i
*>   22.22.22.22/32   10.1.23.2                0             0 200 600 i

R3#show ip as-path-access-list # 查看配置的 as-path access-list
AS path access list 1
    deny _600$
    permit .*
AS path access list 2
    permit _600$

R3#show ip bgp filter-list 2 # 显示表中所有被指定 access-list-num 匹配的路由
BGP table version is 4, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>   22.22.22.22/32   10.1.23.2                0             0 200 600 i

R3#show ip bgp regexp 200.* # 可用于测试正则表达式
BGP table version is 4, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
*>   2.2.2.2/32       10.1.23.2                0             0 200 i
*>   22.22.22.22/32   10.1.23.2                0             0 200 600 i

1.3 实验之路由过滤(filter-list)

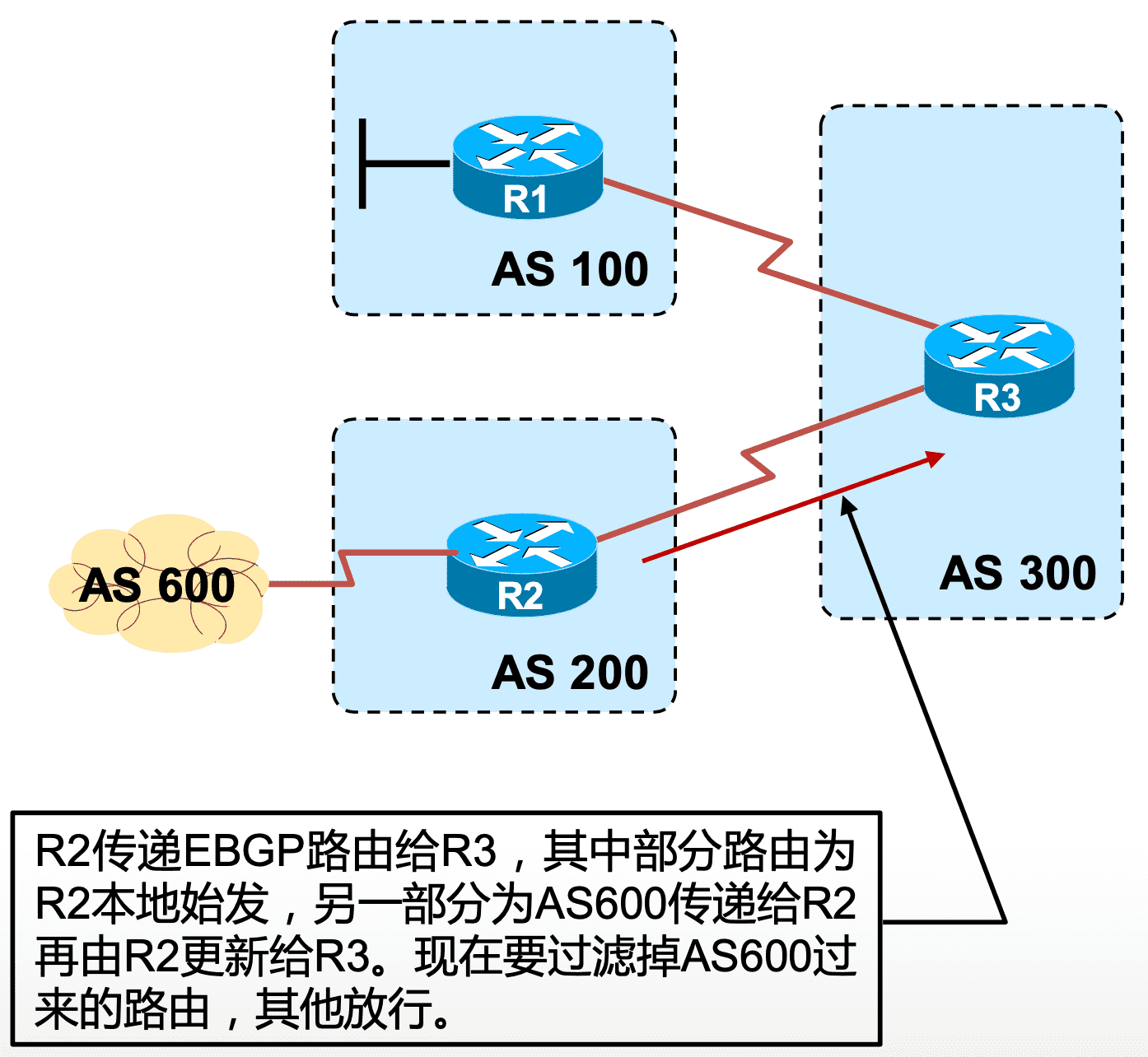

Figure 2: 实验需求

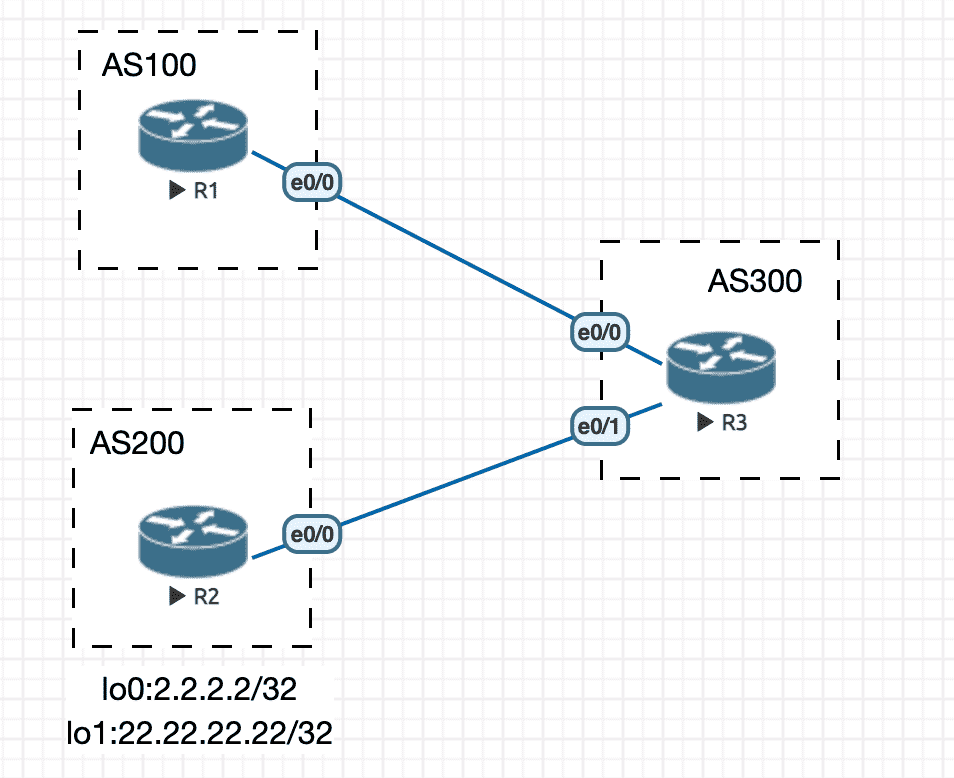

Figure 3: 实验拓扑

R2 上的配置：

router bgp 200
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 network 2.2.2.2 mask 255.255.255.255
 network 22.22.22.22 mask 255.255.255.255
 neighbor 10.1.23.3 remote-as 300
 neighbor 10.1.23.3 route-map RTMAP_OUT_TO_R3 out # 出口方向做策略
!
ip prefix-list PFX_L1 seq 5 permit 22.22.22.22/32
!
route-map RTMAP_OUT_TO_R3 permit 10
 match ip address prefix-list PFX_L1
 set as-path prepend 600 # 通过这种方式添加 AS_PATH
!
route-map RTMAP_OUT_TO_R3 permit 20

此时 R3 的状态是：

R3(config-router)#do show ip b
BGP table version is 14, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
*>   1.1.1.1/32       10.1.13.1                0             0 100 i
*>   2.2.2.2/32       10.1.23.2                0             0 200 i
*>   22.22.22.22/32   10.1.23.2                0             0 200 600 i

对 R3 进行进入方向的路由过滤设置：

router bgp 300
 bgp router-id 3.3.3.3
 bgp log-neighbor-changes
 neighbor 10.1.13.1 remote-as 100
 neighbor 10.1.23.2 remote-as 200
 neighbor 10.1.23.2 filter-list 1 in
!
ip as-path access-list 1 deny _600$ # 始于 AS600 的路由
ip as-path access-list 1 permit .*

再观察 R3 的路由信息：

R3#show ip b
BGP table version is 3, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>   1.1.1.1/32       10.1.13.1                0             0 100 i
 *>   2.2.2.2/32       10.1.23.2                0             0 200 i

Figure 4: 抓包还是能看到这条路由，只是被入接口的策略过滤掉了

1.4 实验之结合 route-map 设置路由属性

Figure 5: 实验需求

在 R3 上设置：

router bgp 300
 bgp router-id 3.3.3.3
 bgp log-neighbor-changes
 neighbor 10.1.13.1 remote-as 100
 neighbor 10.1.23.2 remote-as 200
 neighbor 10.1.23.2 route-map RTMAP_LOCAL_AS in
!
ip as-path access-list 2 permit _600$
!
route-map RTMAP_LOCAL_AS permit 10
 match as-path 2
 set community local-AS
!
route-map RTMAP_LOCAL_AS permit 20

可以观察到：

R3#sh ip b
BGP table version is 4, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
*>   1.1.1.1/32       10.1.13.1                0             0 100 i
*>   2.2.2.2/32       10.1.23.2                0             0 200 i
*>   22.22.22.22/32   10.1.23.2                0             0 200 600 i
R3#sh ip b 22.22.22.22
BGP routing table entry for 22.22.22.22/32, version 4
Paths: (1 available, best #1, table default, not advertised outside local AS)
  Not advertised to any peer
  Refresh Epoch 1
  200 600
    10.1.23.2 from 10.1.23.2 (2.2.2.2)
      Origin IGP, metric 0, localpref 100, valid, external, best
      Community: local-AS
      rx pathid: 0, tx pathid: 0x0
R3#sh ip b 2.2.2.2
BGP routing table entry for 2.2.2.2/32, version 3
Paths: (1 available, best #1, table default)
  Advertised to update-groups:
     4
  Refresh Epoch 1
  200
    10.1.23.2 from 10.1.23.2 (2.2.2.2)
      Origin IGP, metric 0, localpref 100, valid, external, best
      # 这条路由没有设置 Local AS 属性
      rx pathid: 0, tx pathid: 0x0

2 基于 Community 的路由操控

2.1 实验之 Community 的设置

Figure 6: 实验拓扑

2.1.1 实验需求

R1 出口方向为 11.11.11.0/24 和 12.12.12.0/24 的路由分别设置 community 值为 100:11 和 100:12
R2 出口方向为 11.11.11.0/24 添加 no-export ，为 12.12.12.0/24 添加 no-advertise
R3 入口方向针对 12.12.12.0/24 删除所有 community 值

2.1.2 设备配置

router bgp 100
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 network 11.11.11.0 mask 255.255.255.0
 network 12.12.12.0 mask 255.255.255.0
 neighbor 10.1.12.2 remote-as 200
 neighbor 10.1.12.2 send-community
 neighbor 10.1.12.2 route-map RM_OUT_SET_COMM out
ip bgp-community new-format
!
ip prefix-list PL_11 seq 5 permit 11.11.11.0/24
!
ip prefix-list PL_12 seq 5 permit 12.12.12.0/24
!
route-map RM_OUT_SET_COMM permit 10
 match ip address prefix-list PL_11
 set community 100:11
!
route-map RM_OUT_SET_COMM permit 20
 match ip address prefix-list PL_12
 set community 100:12
!
route-map RM_OUT_SET_COMM permit 30

router bgp 200
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 100
 neighbor 10.1.23.3 remote-as 300
 neighbor 10.1.23.3 send-community
 neighbor 10.1.23.3 route-map RM_OUT_ADD_COMM out
!
ip bgp-community new-format
ip community-list standard COMM_100_11 permit 100:11
ip community-list standard COMM_100_12 permit 100:12
!
route-map RM_OUT_ADD_COMM permit 10
 match community COMM_100_11
 set community no-export additive
!
route-map RM_OUT_ADD_COMM permit 20
 match community COMM_100_12
 set community no-advertise additive
!
route-map RM_OUT_ADD_COMM permit 30

router bgp 300
 bgp router-id 3.3.3.3
 bgp log-neighbor-changes
 neighbor 10.1.23.2 remote-as 200
 neighbor 10.1.23.2 route-map RM_IN_DEL_COMM_FOR_100_12 in
!
ip bgp-community new-format
ip community-list standard COMM_100_12 permit 100:12
ip community-list standard COMM_DEL permit 100:12
ip community-list standard COMM_DEL permit no-advertise
!
route-map RM_IN_DEL_COMM_FOR_100_12 permit 10
 match community COMM_100_12
 set comm-list COMM_DEL delete
!
route-map RM_IN_DEL_COMM_FOR_100_12 permit 20

2.1.3 实验结果

R2#show ip bgp detail
BGP routing table entry for 11.11.11.0/24, version 2
  Paths: (1 available, best #1, table default)
  Advertised to update-groups:
     7
  Refresh Epoch 1
  100
    10.1.12.1 from 10.1.12.1 (1.1.1.1)
      Origin IGP, metric 0, localpref 100, valid, external, best
      Community: 100:11
      rx pathid: 0, tx pathid: 0x0
BGP routing table entry for 12.12.12.0/24, version 3
  Paths: (1 available, best #1, table default)
  Advertised to update-groups:
     7
  Refresh Epoch 1
  100
    10.1.12.1 from 10.1.12.1 (1.1.1.1)
      Origin IGP, metric 0, localpref 100, valid, external, best
      Community: 100:12
      rx pathid: 0, tx pathid: 0x0

R3#show ip bgp detail
BGP routing table entry for 11.11.11.0/24, version 2
  Paths: (1 available, best #1, table default, not advertised to EBGP peer)
  Not advertised to any peer
  Refresh Epoch 1
  200 100
    10.1.23.2 from 10.1.23.2 (2.2.2.2)
      Origin IGP, localpref 100, valid, external, best
      Community: 100:11 no-export
      rx pathid: 0, tx pathid: 0x0
BGP routing table entry for 12.12.12.0/24, version 3
  Paths: (1 available, best #1, table default)
  Not advertised to any peer
  Refresh Epoch 1
  200 100
    10.1.23.2 from 10.1.23.2 (2.2.2.2)
      Origin IGP, localpref 100, valid, external, best # community 被删了
      rx pathid: 0, tx pathid: 0x0

Figure 7: 抓包仍然可以看到发送过来的 communities

3 过滤工具

Figure 8: 各种过滤器作用点

3.1 prefix-list

3.1.1 配置示例

Figure 9: 配置拓扑(要求 R2 上，过滤掉 12.12.12.0/24 路由，其他放行)

R2 的配置：

router bgp 120
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 120
 neighbor 10.1.23.3 remote-as 300
 neighbor 10.1.23.3 prefix-list PFX_DENY_12 out
!
ip prefix-list PFX_DENY_12 seq 5 deny 12.12.12.0/24
ip prefix-list PFX_DENY_12 seq 10 permit 0.0.0.0/0 le 32 # permit any other

3.2 distribute-list

3.2.1 配置示例

Figure 10: 配置拓扑(要求 R2 上，过滤掉 12.12.12.0/24 路由，其他放行)

R2 上的配置：

router bgp 120
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 120
 neighbor 10.1.23.3 remote-as 300
 neighbor 10.1.23.3 distribute-list ACL_DENY_12 out
!
ip access-list standard ACL_DENY_12
 deny   12.12.12.0 # ACL 匹配路由时不要用反掩码
 permit any
!

3.2.1.1 直接在 router-config 模式下配置

router bgp 120
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 120
 neighbor 10.1.23.3 remote-as 300
 distribute-list prefix PFX_DENY_12 out
!
ip prefix-list PFX_DENY_12 seq 5 deny 12.12.12.0/24
ip prefix-list PFX_DENY_12 seq 10 permit 0.0.0.0/0 le 32

3.3 route-map

3.4 advertise-map (条件通告)

R1(config-router)#neighbor 10.1.12.2 advertise-map ?
  WORD  advertise route-map name
R1(config-router)#neighbor 10.1.12.2 advertise-map RM1 ?
  exist-map      advertise prefix only if prefix is in the condition exists
  non-exist-map  advertise prefix only if prefix in the condition does not exist
R1(config-router)#neighbor 10.1.12.2 advertise-map RM1 non-exist-map ?
  WORD  condition route-map name

Figure 11: 配置拓扑

R1 上的配置:

router bgp 100
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 network 1.1.1.10 mask 255.255.255.255
 network 1.1.1.20 mask 255.255.255.255
 network 1.1.1.30 mask 255.255.255.255
 network 1.1.1.40 mask 255.255.255.255
 neighbor 10.1.12.2 remote-as 200
 neighbor 10.1.12.2 advertise-map RM1 non-exist-map RM2
 # 如果 RM2 有匹配则使用 RM2 ，否则使用 RM1
!
ip prefix-list PFX_10_20 seq 5 permit 1.1.1.10/32
ip prefix-list PFX_10_20 seq 10 permit 1.1.1.20/32
!
ip prefix-list PFX_30_40 seq 5 permit 1.1.1.30/32
ip prefix-list PFX_30_40 seq 10 permit 1.1.1.40/32
!
route-map RM2 permit 10
 match ip address prefix-list PFX_30_40
!
route-map RM1 permit 10
 match ip address prefix-list PFX_10_20

R2 上的路由：

R2#sh ip b
BGP table version is 7, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>   1.1.1.30/32      10.1.12.1                0             0 100 i
 *>   1.1.1.40/32      10.1.12.1                0             0 100 i

当把 R1 上的 lo3/lo4 shutdown 后，再次观察 R2 的路由：

R2#sh ip b
BGP table version is 11, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>   1.1.1.10/32      10.1.12.1                0             0 100 i
 *>   1.1.1.20/32      10.1.12.1                0             0 100 i

3.5 ORF

即下游路由器将 in 方向上部署的策略 (prefix-list) 发送给上游路由器，这样上游路由器只会发出下游路由器需要的条目，以此减少不必要的网络传输和计算。

3.5.1 实验

Figure 12: 实验拓扑

3.5.1.1 初始配置

router bgp 120
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 network 1.1.1.1 mask 255.255.255.255
 network 11.11.11.11 mask 255.255.255.255
 network 111.111.111.111 mask 255.255.255.255
 neighbor 10.1.12.2 remote-as 120

router bgp 120
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 120
 neighbor 10.1.12.1 prefix-list PFX_IN in
!
ip prefix-list PFX_IN seq 5 deny 11.11.11.11/32
ip prefix-list PFX_IN seq 10 permit 0.0.0.0/0 le 32

3.5.1.2 初始状态

R2#show ip bgp
BGP table version is 5, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network            Next Hop            Metric LocPrf Weight Path
*>i  1.1.1.1/32         10.1.12.1                0    100      0 i
*>i  111.111.111.111/32 10.1.12.1                0    100      0 i
# 由于 in 方向的策略作用，11.11.11.11/32 路由被过滤了

R1#show ip bgp neighbors 10.1.12.2 advertised-routes # 查看向 R2 发送的路由信息
BGP table version is 4, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network             Next Hop            Metric LocPrf Weight Path
*>   1.1.1.1/32          0.0.0.0                  0         32768 i
*>   11.11.11.11/32      0.0.0.0                  0         32768 i # R1 仍向外发送此路由
*>   111.111.111.111/32  0.0.0.0                  0         32768 i

Total number of prefixes 3

3.5.1.3 配置ORF

router bgp 120
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 neighbor 10.1.12.2 remote-as 120
 !
 address-family ipv4
  network 1.1.1.1 mask 255.255.255.255
  network 11.11.11.11 mask 255.255.255.255
  network 111.111.111.111 mask 255.255.255.255
  neighbor 10.1.12.2 activate
  neighbor 10.1.12.2 capability orf prefix-list receive
 exit-address-family
!

router bgp 120
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 neighbor 10.1.12.1 remote-as 120
 !
 address-family ipv4
  neighbor 10.1.12.1 activate
  neighbor 10.1.12.1 capability orf prefix-list send
  neighbor 10.1.12.1 prefix-list PFX_IN in
 exit-address-family
!
ip prefix-list PFX_IN seq 5 deny 11.11.11.11/32
ip prefix-list PFX_IN seq 10 permit 0.0.0.0/0 le 32

3.5.1.4 配置后的状态

R1#show ip bgp neighbors | include ORF
    Outbound Route Filter (ORF) type (128) Prefix-list:
  Outbound Route Filter (ORF): received (2 entries)
    ORF prefix-list:                      1        n/a
R1#show ip b neighbors 10.1.12.2 advertised-routes
BGP table version is 4, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network             Next Hop            Metric LocPrf Weight Path
*>   1.1.1.1/32          0.0.0.0                  0         32768 i
*>   111.111.111.111/32  0.0.0.0                  0         32768 i
# 收到 ORF 后，11.11.11.11/32 就不再发送了
Total number of prefixes 2

BGP 路由策略工具 {Back to Index} Expand All Details on Page

Table of Contents
